KINETIC LED

Matrix Retractable Kinetic LED Exhibition & Retail Mechanical LED Screen

P1.98 (160×160mm) / P1.945 (250×250mm)

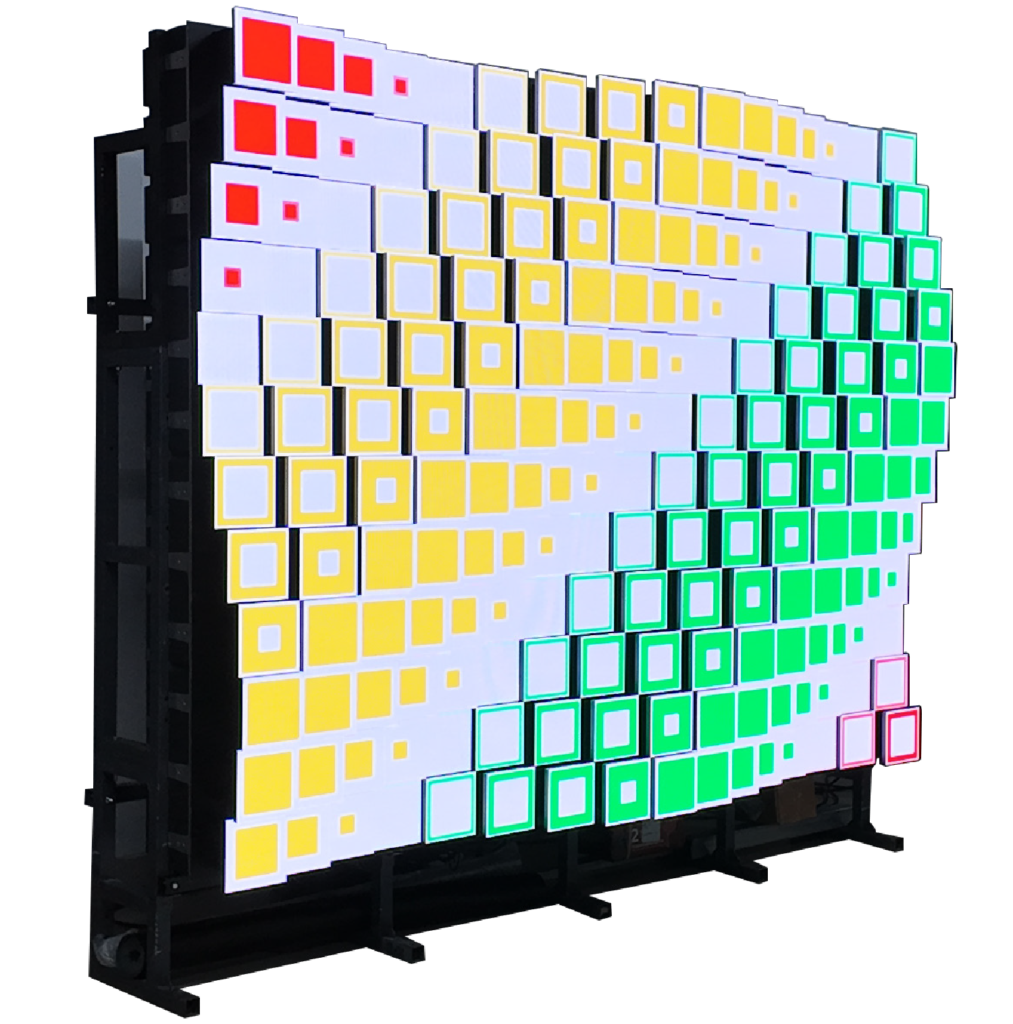

Kinetic LED retractable telescopic display module, Dubai

IN

MOTION

PRODUCT FEATURES

Die-Cast Aluminium Cabinet

12-in-1 (644x483mm) or 4-in-1 (500x500mm) die-cast aluminium cabinet allows precise, fast installation for stacked display carriers of any size.

70% Quieter Operation

Closed-loop stepping drive system cuts mechanical noise by roughly 70% versus open-loop telescopic designs.

200mm Telescopic Stroke

Extra-large 200mm extension travel at up to 300mm/s creates dramatic, camera-ready motion effects for exhibits and launches.

Video-Bound Motion Scripts

Each motion script can be bound to a single movie, with extension and retraction speed adjustable through the control software.

Multiple Scripts, Multiple Films

Supports several movies corresponding to several motion scripts, called via an external UDP protocol for central control.

1mm Precision Module Gap

Industrial-grade linear guides hold the gap between telescopic modules to as little as 1mm for a seamless closed surface.

Front-Maintenance Design

Ultra-thin, front-accessible modules allow compact installation without needing embedded rear access.

Software Auto-Recovery

Built-in software automatically detects and clears errors, reducing on-site troubleshooting for long-running installations.

Theoretically Infinite Stacking

Individual telescopic units stack together to form an integral display carrier of virtually any size, limited only by the installation.

PRODUCT SPECS

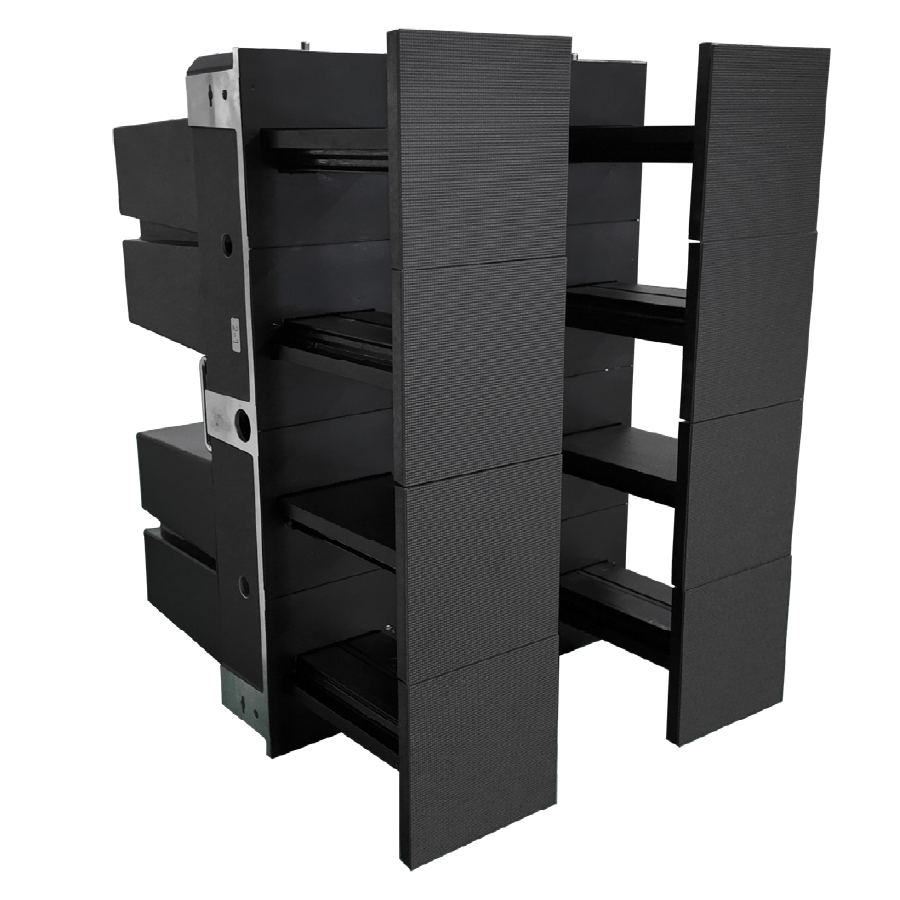

Die-Cast Cabinet

644x483mm 12-in-1 or 500x500mm 4-in-1 die-cast aluminium cabinet for fast, precise installation.

Rear Power Bay

Dual-voltage power supply — 220V single-phase under 3KW, 380V three-phase five-wire above 3KW.

Bus Protocol Wiring

Concealed cabling on a bus protocol network, called via an external UDP calling protocol.

Closed-Loop Stepper Drive

Closed-loop stepping drive system cuts mechanical noise by roughly 70%.

Precision Linear Guides

Industrial-grade linear guides hold the telescopic module gap to as little as 1mm.

200mm Telescopic Stroke

Extra-large 200mm extension travel at up to 300mm/s for dramatic reveal effects.

Modular Die-Cast Design

644x483mm 12-in-1 or 500x500mm 4-in-1 die-cast aluminium units stack together to form an integral display carrier of virtually any size.

Front-Maintenance, Ultra-Thin

Front-accessible design allows compact or embedded installation without the risk associated with rear-access maintenance.

Software-Driven Motion Control

Comes with a built-in motion script you can edit yourself — extension and retraction speed are adjustable through the control program, with automatic detection and clearing of errors.

Script-Bound to Video

Each motion script can be bound to a specific video, with support for multiple scripts corresponding to multiple movies, called over UDP or the bus protocol network.
